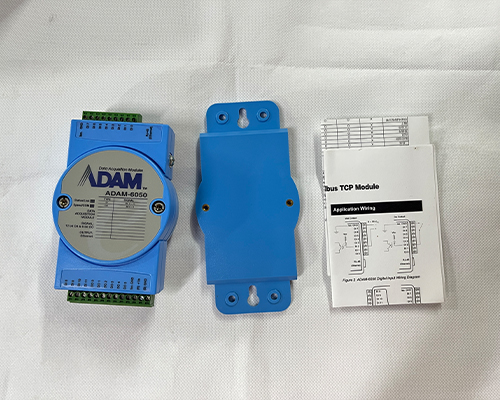

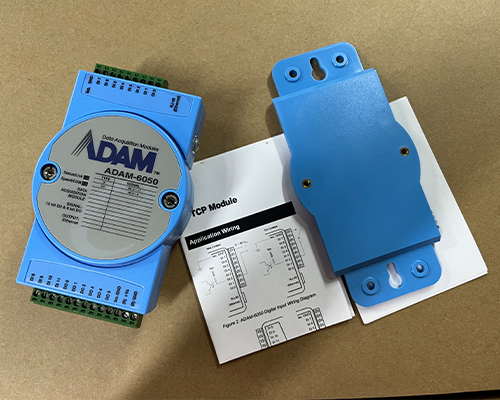

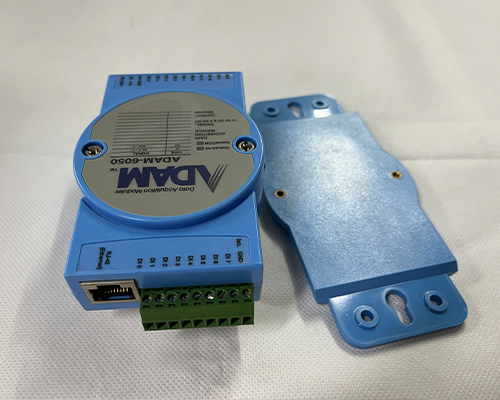

ADAM-6050
This 18-channel isolated digital I/O module is an intelligent industrial I/O device integrating high reliability, networking, and cloud integration, designed specifically for remote monitoring and Industrial Internet of Things (IIoT) applications. The module provides 12 digital inputs (DI) and 6 digital outputs (DO), each with isolation, fault tolerance, and overvoltage protection to ensure stable operation in complex electrical environments. The device supports dry/wet contact input modes, and its built-in web server allows direct access and configuration via a browser, with automatic data upload to the Azure cloud platform for easy remote monitoring and data analysis.
Key Features:
18-Channel Isolated I/O Design: Provides 12 digital inputs and 6 digital outputs, supporting various industrial signal types.
Fault Tolerance and Overvoltage Protection: Each I/O channel has an independent protection mechanism to ensure system safety and stability under high noise or abnormal voltage conditions.
Dry/Wet Contact Input Support: Compatible with various industrial sensors and signal sources to meet different field application needs.
High-Speed Network Communication: Employs a 10/100 Mbps Ethernet interface to ensure real-time data transmission and fast system response.
Cloud Data Update: Supports integration with the Microsoft Azure cloud platform, allowing I/O status and monitoring data to be uploaded to the cloud for remote data recording and management.
Built-in Web Server: No additional software required; module monitoring, configuration, and control can be performed via a web browser.
System Monitor Timer (Watchdog): A built-in watchdog timer automatically detects and resumes operation when the system malfunctions, ensuring long-term stable online operation.
