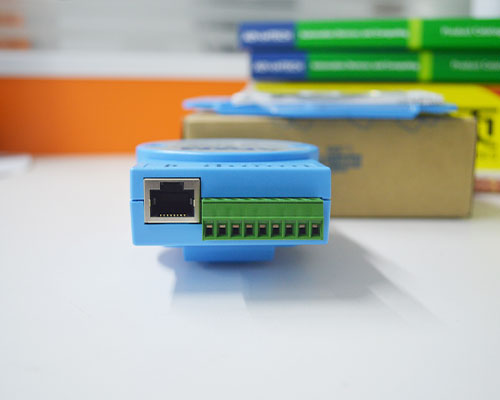

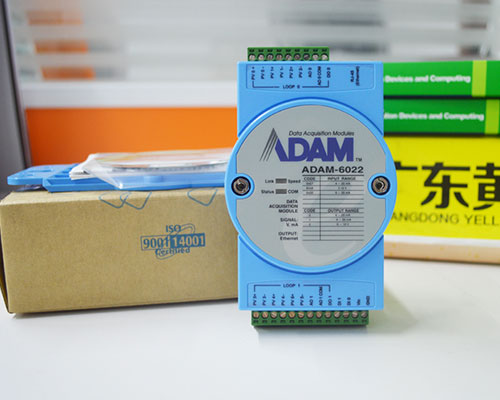

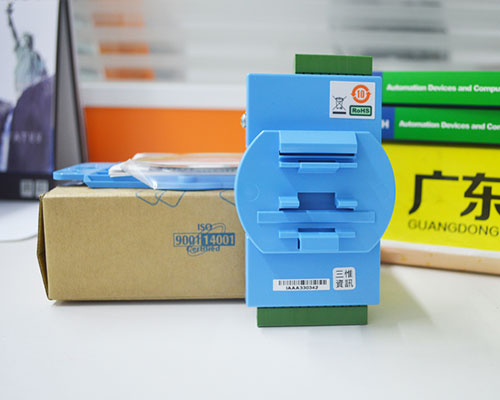

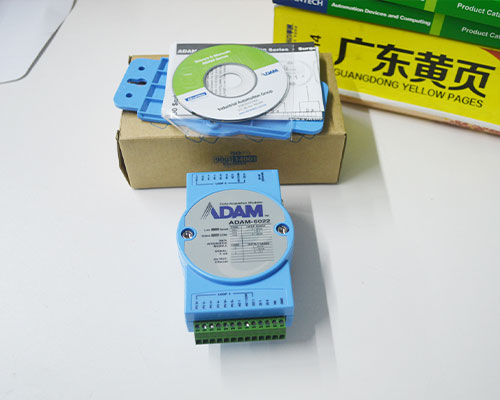

ADAM-6022

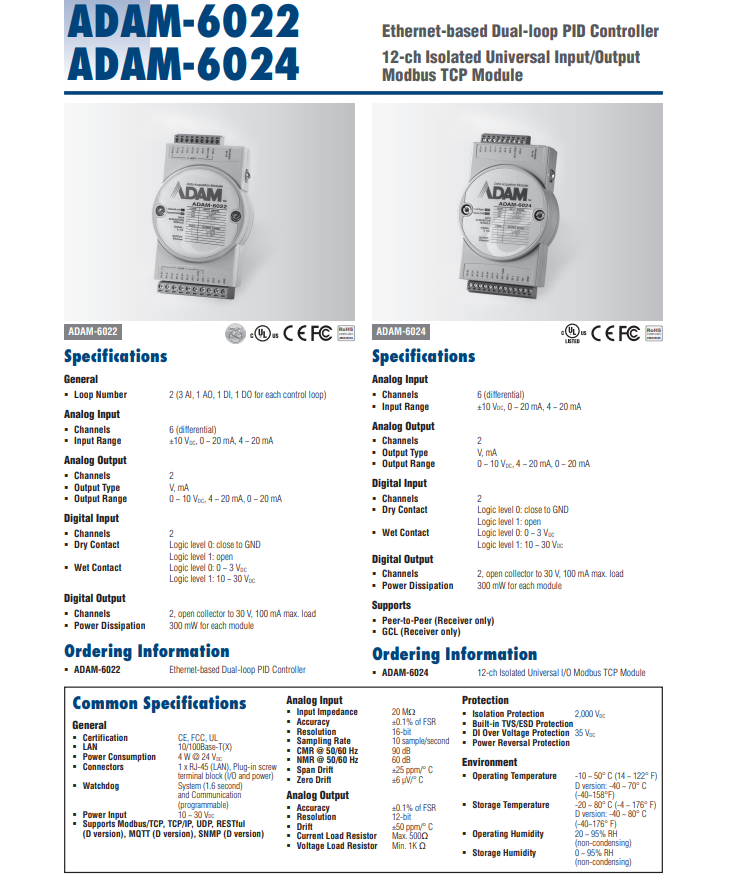

This controller is an Ethernet-based dual-loop PID controller, integrating a fully designed dual-loop PID algorithm to simultaneously manage two independent control loops for precise industrial process control. Each PID loop includes three analog inputs, one analog output, one digital input, and one digital warning output, supporting various analog input/output ranges (0–10 VDC, 0–20 mA, 4–20 mA) suitable for controlling various industrial parameters such as temperature, pressure, and flow. The module supports heating/cooling behavior modes (forward/reverse control), allows flexible configuration of PID loop enable/disable states, and provides a manual analog output control mode. A built-in watchdog timer and web server facilitate remote monitoring, system configuration, and fault recovery.
Key Features:
🌐 Ethernet Communication
Remote monitoring, configuration, and data acquisition via Ethernet.
⚡ Dual-Loop PID Control
Each loop includes:
3 analog inputs
1 analog output
1 digital input
1 digital warning output
📈 Multiple Input/Output Support
Analog input/output range: 0–10 VDC, 0–20 mA, 4–20 mA
Supports switching between manual and automatic control.
🔄 Heating/Cooling Modes
Supports forward/reverse control to adapt to different process requirements.
🛡️ Built-in Watchdog Timer
Automatically resets in case of system malfunction, ensuring continuous and reliable operation.
💻 Built-in Web Server
Real-time monitoring, PID parameter adjustment, and status viewing are possible via a web browser, requiring no additional software.
