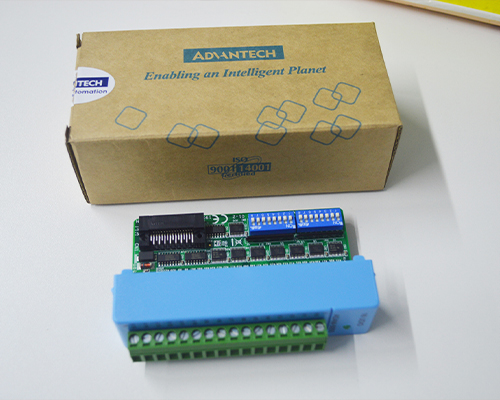

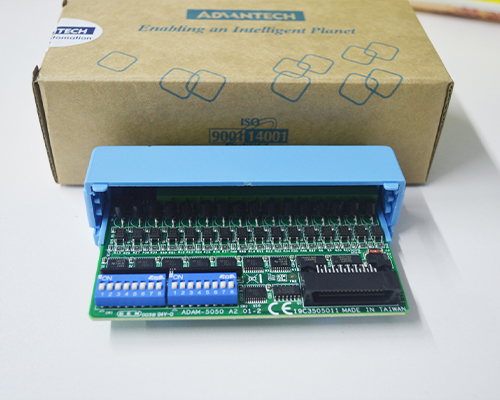

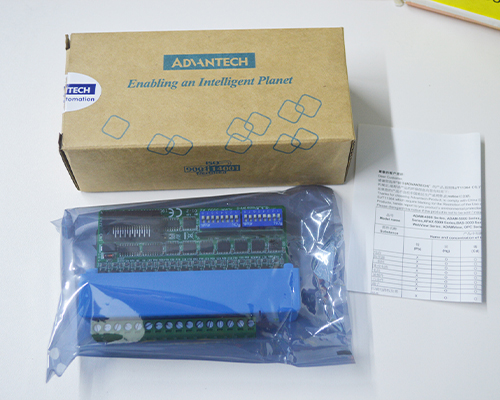

ADAM-5050
The 16-channel general-purpose digital I/O module is a flexible and highly reliable data acquisition and control module. It integrates 16 independently configurable digital channels, each of which can be freely set to input or output mode via DIP switches, greatly improving the flexibility of system integration and field applications. The module supports dry/wet contact input and open collector output, and has a drive capability of up to 30 V and 100 mA, making it suitable for various industrial automation, equipment control, and signal acquisition scenarios.
Key Features:
16-Channel Universal I/O Design: Each channel can be independently configured as an input or output, flexibly adapting to different control and monitoring needs.
Independent DIP Switch Settings: Easily switch input/output functions without software, simplifying on-site debugging and configuration.
Digital Inputs Support Dry/Wet Contacts: Compatible with various industrial signal sources, suitable for different application environments and wiring methods.
Digital Outputs: Open Collector Design: Supports up to 30 V, 100 mA drive capability, with a maximum load power of 450 mW, ensuring stable and reliable operation.
Low Power Consumption: Typical power consumption is only 0.35 W, maximum 1.2 W, energy-efficient and suitable for long-term continuous operation.
