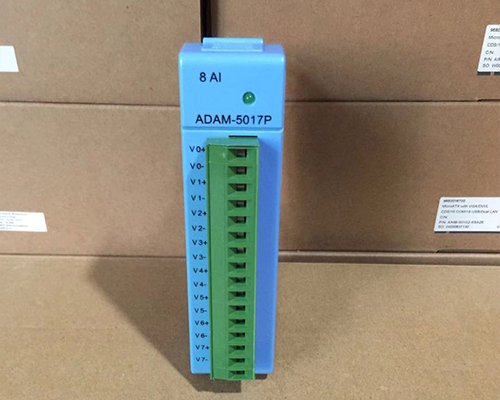

ADAM-5017P
This module is a high-performance, multi-functional 8-channel analog input module. Each channel can be independently configured with its input range and signal type, supporting mV, V (unipolar/bipolar), and mA inputs. The module incorporates high-level 3,000 VDC isolation protection and TVS/ESD protection circuitry, ensuring stable and accurate signal acquisition in complex industrial environments. With a high common-mode voltage immunity of 200 VDC and ±60 VDC overvoltage protection, this module is particularly suitable for precision measurement and process control applications in high-voltage interference environments.
Key Features:
8-Channel Independent Input Configuration
Each channel can be independently set in terms of range and input type, supporting mV, V (unipolar/bipolar), and mA signals.
Strong Electrical Protection
High Common-Mode Voltage Tolerance: 200 VDC
Overvoltage Protection: ±60 VDC
Built-in TVS/ESD protection circuitry enhances system immunity.
High Isolation Design
Provides 3,000 VDC isolation voltage, effectively preventing interference from ground potential differences and signal coupling.
High Precision Measurement
Voltage Mode: Accuracy ±0.1% or higher
Current Mode: Accuracy ±0.2% or higher
Suitable for industrial process control and laboratory-grade precision measurements.
High Common-Mode Rejection Ratio (CMR)
Minimum rejection ratio of 92 dB at 50/60 Hz ensures clean and reliable measurement signals.
Built-in Current Measurement Resistor
Voltage input impedance up to 20 MΩ, automatically switches to a 120Ω precision resistor for current input.
Stable sampling performance. Supports a system sampling rate of 10 points/second, balancing sampling accuracy and real-time response.
