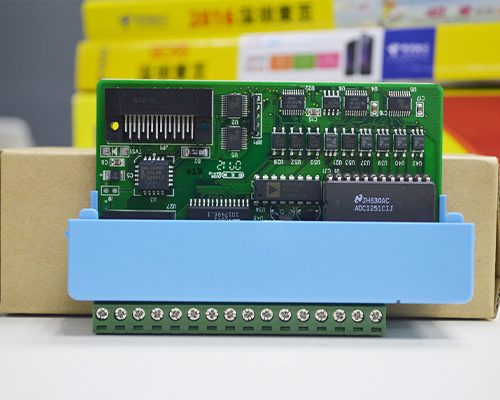

ADAM-5017H
The 8-channel high-speed analog input module is a high-performance, high-speed sampling industrial-grade data acquisition module designed for real-time signal monitoring and rapidly changing process control. The module features 12-bit resolution (including sign bit), 3000 VDC isolation protection, and a data sampling capacity of up to 8000 samples/second, meeting the demanding requirements of precision control, vibration analysis, and transient data acquisition. Each channel supports independent range settings and is compatible with multiple signal types such as mV, V, and mA, providing excellent flexibility and measurement accuracy.
Key Features:
12-bit Effective Resolution + Sign Bit
Supports signed sampling format, ensuring high accuracy and high dynamic range signal measurement.
High-Speed Sampling Performance
ADAM-5000/485 & 5000E Series: Up to 100 points/second
ADAM-5510 & 5511 Controllers: Up to 8000 points/second
Meets a variety of industrial control and dynamic data acquisition applications.
3000 VDC Isolation Protection
Provides high voltage isolation between channels and the system, effectively preventing noise interference and ground loop effects.
Multi-Range Input Type Support
Meets mV, V, and mA signal types, suitable for various industrial sensors and process signals.
Independent Range Configuration Per Channel
Each channel can be independently range-set, improving flexibility and application adaptability.
1000 Hz Bandwidth Design
Supports high-frequency signal input, suitable for monitoring dynamic signals such as vibration, pressure, and speed.
High-Precision Measurement
Accuracy up to ±0.1% or better, ensuring data consistency over long-term operation.
