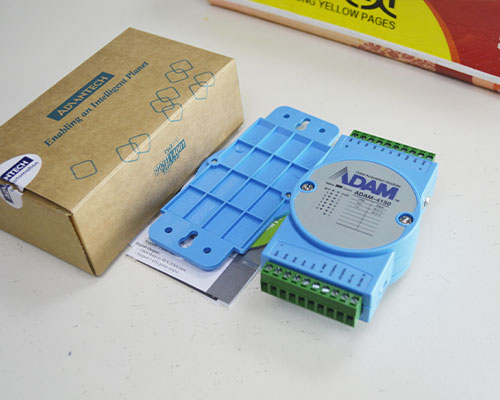

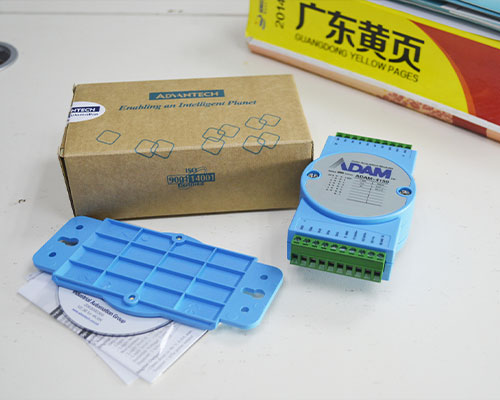

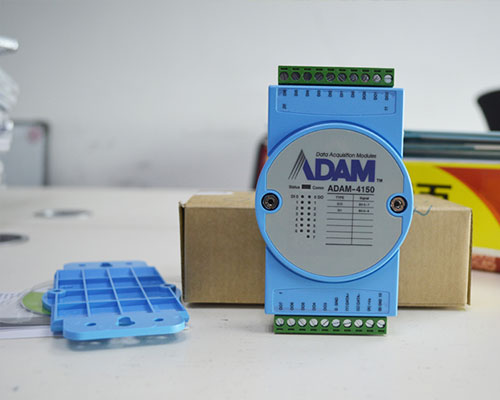

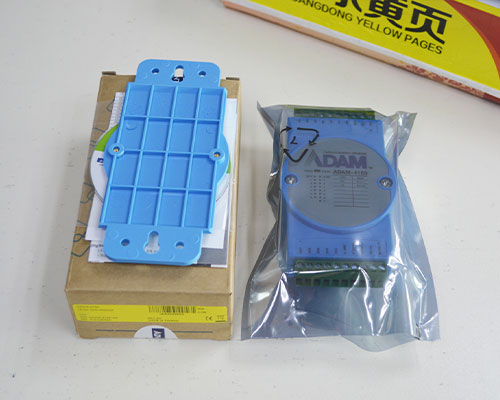

ADAM-4150
This digital I/O module is a highly reliable, intelligent, and interference-resistant industrial-grade input/output control device, integrating 7 digital inputs and 8 digital outputs. The module features a wide-temperature design and multiple protection mechanisms, providing advanced noise immunity capabilities such as surge, EFT, and ESD protection, making it suitable for harsh industrial environments. Furthermore, the module supports digital filtering, pulse output, overcurrent protection, and DI counting functions, and is equipped with intuitive LED status indicators, providing a flexible, safe, and stable digital signal control solution.
Key Features:
Abundant I/O Resources
Provides 7 digital input (DI) channels and 8 digital output (DO) channels, supporting various control logics and status monitoring.
High Noise Immunity and Industrial Protection
1kV Surge Protection at Input Terminals
3kV EFT (Electrical Fast Transient) Protection
8kV ESD (Electrostatic Discharge) Protection
Effectively resists electromagnetic interference and surge impacts, ensuring stable and reliable signals.
Wide Power Input Range
Supports +10 VDC to +48 VDC, compatible with various industrial power supply systems.
LED Status Indicators
Each input/output channel has an LED indicator that displays the channel status in real time, facilitating debugging and maintenance.
Digital Filter Function
Built-in adjustable digital filtering mechanism to eliminate jitter and transient interference, improving signal acquisition accuracy.
High-Speed DI Counting Function
Each digital input channel can be used as a 1 kHz counter, suitable for pulse signal acquisition and event counting applications.
DO Channel Pulse Output
Supports pulse control output function, suitable for precise control of solenoid valves, actuators, and other equipment.
Overcurrent/Short Circuit Protection Design
The digital output channel features overcurrent and short circuit protection to ensure system and load safety.
Wide Temperature Range Operation Capability
Can operate stably for extended periods in high and low temperature environments, suitable for various industrial settings.
