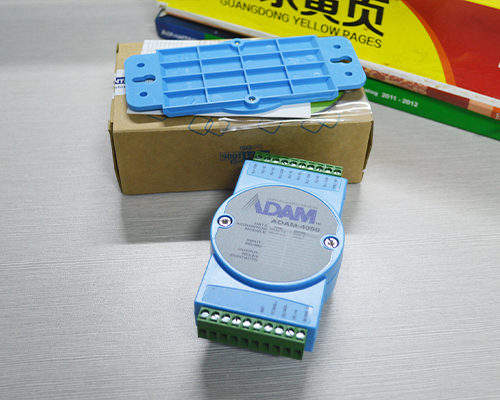

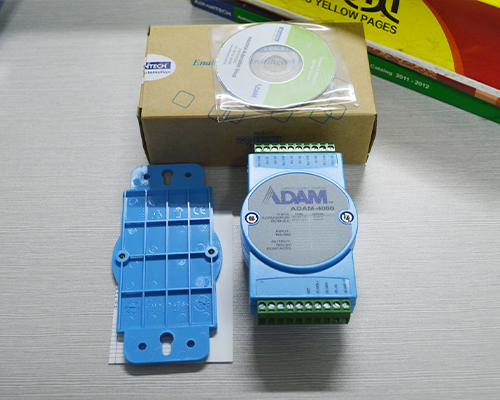

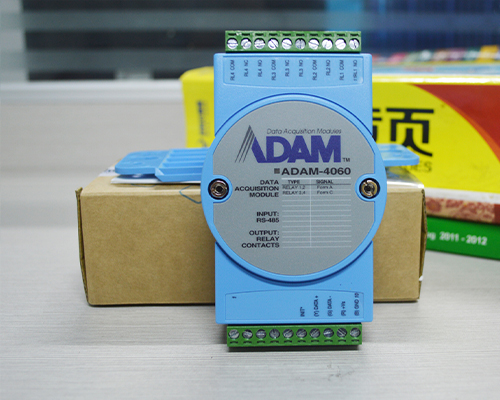

ADAM-4060

The relay output module is a highly reliable industrial-grade switch control device, providing four independent relay outputs, including two Type A (normally open) and two Type C (changeover) contact configurations, suitable for a variety of load control applications. This module boasts excellent electrical performance, with a 500 VAC breakdown voltage and ≥1000 MΩ insulation resistance (500 VDC tested), enabling long-term stable operation in harsh industrial environments.

Key Features:

4 High-Performance Relay Outputs

2 Type A (Normally Open) + 2 Type C (Converter) Outputs

Supports various AC and DC load control

Strong Insulation and Withstand Voltage Performance

Breakdown Voltage: 500 VAC (50/60 Hz)

Insulation Resistance: ≥1000 MΩ (at 500 VDC)
Effectively prevents signal crosstalk and electrical breakdown, ensuring safe isolation.

Industrial-Grade Reliable Structure
Utilizes high-quality relay components, featuring long lifespan and high stability, suitable for continuous industrial applications.

Modular Design for Easy Installation
Supports DIN rail mounting, compact structure, facilitating system integration and field maintenance.
